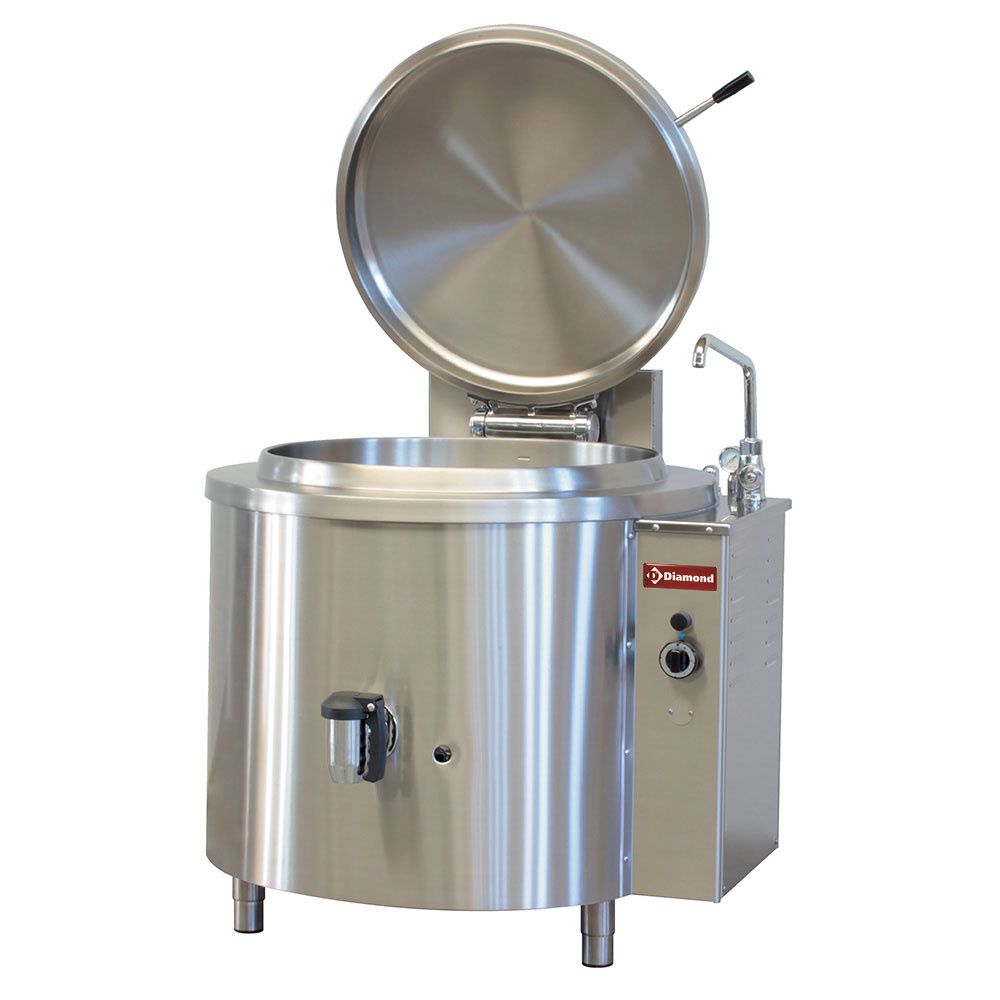

Boiling pan gas 150 liters, indirect heating
SKU GMM/150I
€ 8 433,00
On Sale
was € 11 244,00 Save 25%
Lowest price in 30 days before discount: € 8 945,60
In stock
1
Save this product for later
Boiling pan gas 150 liters, indirect heating
Product Details
Merk: Diamond
height_mm: 900
width_mm: 850
length_mm: 850
height_mm: 900
length_mm: 850
width_mm: 850
Weight: 175.00 kg
- Tank diameter 600 mm, depth 540 mm.
- "Deep-drawn" tank, bottom made of polished AISI 316 stainless steel (20/10 mm thick) wall made of 304 stainless steel (20/10 mm thick). Indirect heating, double jacket made of 304 stainless steel (15/10 mm thick).
- Made of AISI 304 stainless steel, adjustable stainless steel feet. Covering: made of AISI 304 stainless steel (10/10 mm thick). Work surface: made of AISI 304 stainless steel (15/10 mm thick).
- "Deep-drawn" tank wall made of stainless steel 304, bottom made of polished AISI 316 steel, resistant to salt corrosion and wear, equipped with a removable strainer to protect the drain valve. Water tap for filling the tank, 2" drain valve.
- "Deep-drawn" cover made of 304 stainless steel, self-compensating hinges allowing gradual closing and opening.
- Indirect heating, double jacket tank made of 304 stainless steel, filling by the safety group and control valves of minimum/maximum level of the double jacket. Pressure control of the double jacket by a 0.45 bar valve, with pressure gauge and vacuum valve.
- Gas heating by 304 stainless steel tubular burners with stabilized flame, regulation by thermostatic valve.
- Safety thermostat, preventing water direction operation in the double jacket.
- Working temperature up to 100°C.
