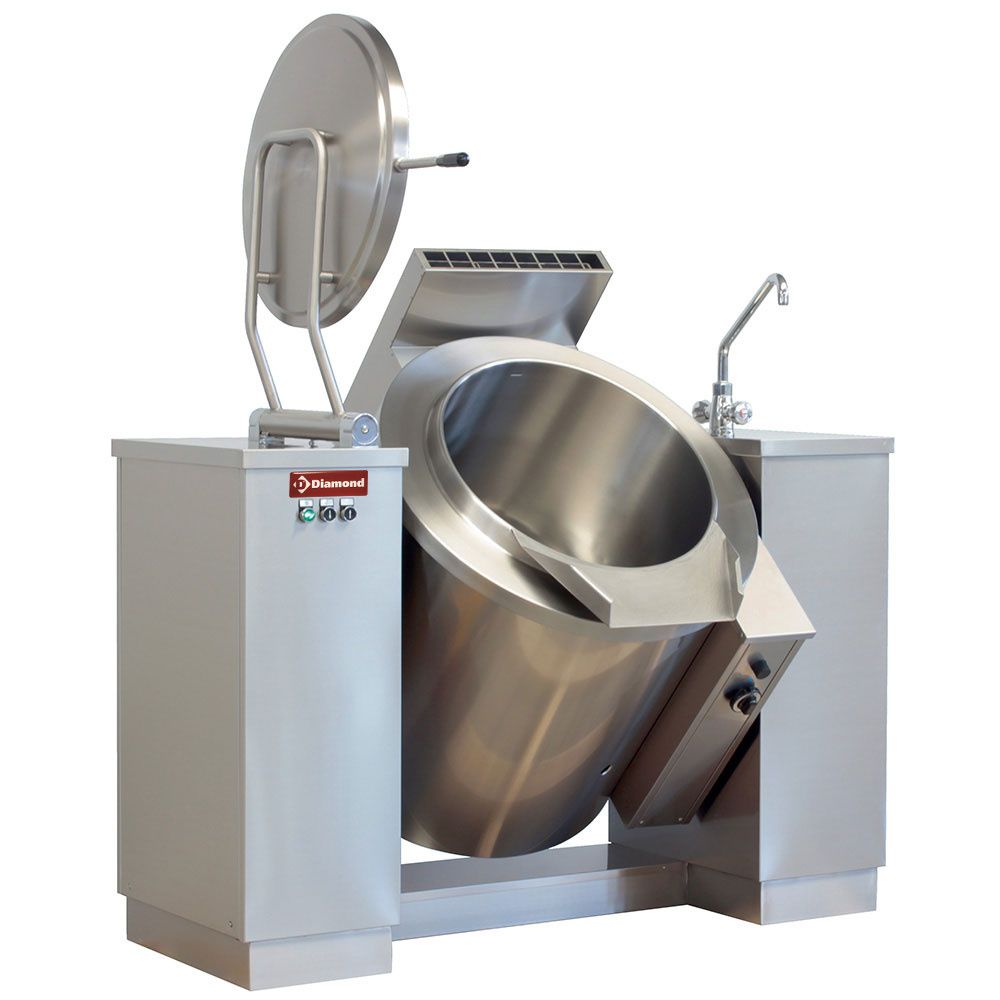

Gas Tilting Boiling pan, 300 liters, indirect heating
SKU GMB/300I
€ 20 948,25
On Sale
was € 27 931,00 Save 25%
Lowest price in 30 days before discount: € 22 168,80
In stock
1
Save this product for later
Gas Tilting Boiling pan, 300 liters, indirect heating
Product Details
Merk: Diamond
height_mm: 1150
width_mm: 1200
length_mm: 1950
Type: Kantelbaar
height_mm: 1150
length_mm: 1950
width_mm: 1200
Weight: 510.00 kg
- Tank diameter 960 mm, depth 500 mm.
- Deep-drawn" tank, bottom made of polished AISI 316 stainless steel (30/10 mm thick) wall made of 304 stainless steel (25/10 mm thick). Indirect heating, double jacket made of 304 stainless steel (20/10 mm thick).
- Made of AISI 304 stainless steel, version on AISI 304 stainless steel columns (delivered with floor fixing kit). Covering: made of AISI 304 stainless steel (10/10 mm thick). Work surface: made of AISI 304 stainless steel (15/10 mm thick).
- Deep-drawn" tank wall made of 304 stainless steel, bottom made of polished AISI 316 steel, resistant to salt corrosion and wear. Water tap for filling the tank.
- Motorized tank tilting. Operation on the front side.
- Deep-drawn" cover made of 304 stainless steel, self-compensating hinges allowing gradual closing and opening.
- Indirect heating, double jacket tank made of 304 stainless steel, filling by the safety group and control valves of minimum/maximum level of the double jacket. Pressure control of the double jacket by a 0.45 bar valve, with pressure gauge and vacuum valve.
- Gas heating by 304 stainless steel tubular burners with stabilized flame, regulation by thermostatic valve.
- Safety thermostat, preventing water direction operation in the double jacket, as well as an operating pressure switch.
- Working temperature up to 100°C.
