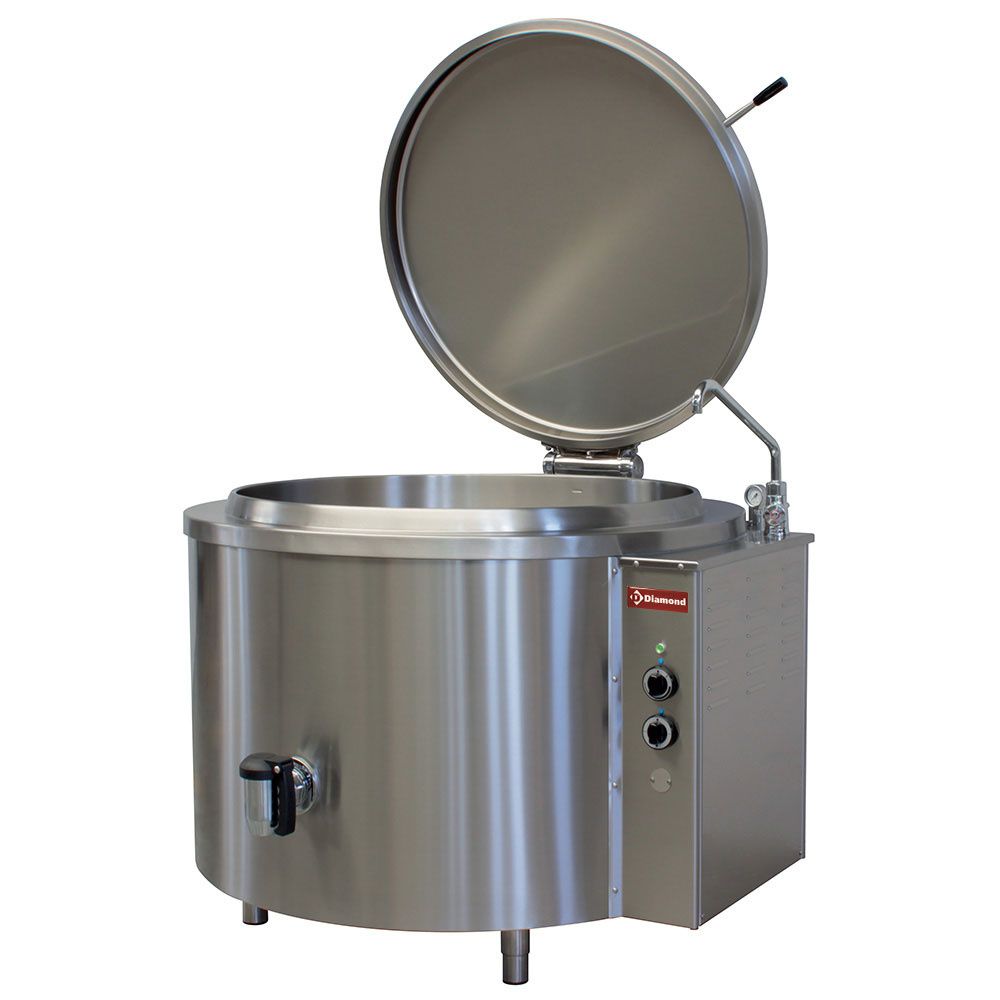

Electric boiling pan electric 500 liters, indirect heating
SKU EMM/500I
€ 17 214,75
On Sale
was € 22 953,00 Save 25%
Lowest price in 30 days before discount: € 18 261,60
In stock
1
Save this product for later
Electric boiling pan electric 500 liters, indirect heating
Product Details
Merk: Diamond
height_mm: 1000
width_mm: 1300
length_mm: 1300
height_mm: 1000
length_mm: 1300
width_mm: 1300
Weight: 315.00 kg
- Tank diameter 1060 mm, depth 600 mm.
- "Deep-drawn" tank, bottom made of polished AISI 316 stainless steel (40/10 mm thick) wall made of 304 stainless steel (25/10 mm thick). Indirect heating, double jacket made of 304 stainless steel (20/10 mm thick).
- Made of AISI 304 stainless steel, adjustable stainless steel feet. Covering: made of AISI 304 stainless steel (10/10 mm thick). Work surface: made of AISI 304 stainless steel (15/10 mm thick).
- "Deep-drawn" tank wall made of stainless steel 304, bottom made of polished AISI 316 steel, resistant to salt corrosion and wear, equipped with a removable strainer to protect the drain valve. Water tap for filling the tank, 2" drain valve.
- "Deep-drawn" cover made of 304 stainless steel, self-compensating hinges allowing gradual closing and opening.
- Indirect heating, double jacket tank made of 304 stainless steel, filling by the safety group and control valves of minimum/maximum level of the double jacket. Pressure control of the double jacket by a 0.45 bar valve, with pressure gauge and vacuum valve.
- Electric heating by INCOLOY resistors immersed in the double envelope, power regulation by means of an energy regulator.
- Safety thermostat, preventing water direction operation in the double jacket, as well as an operating pressure switch...
- Working temperature up to 100°C.
