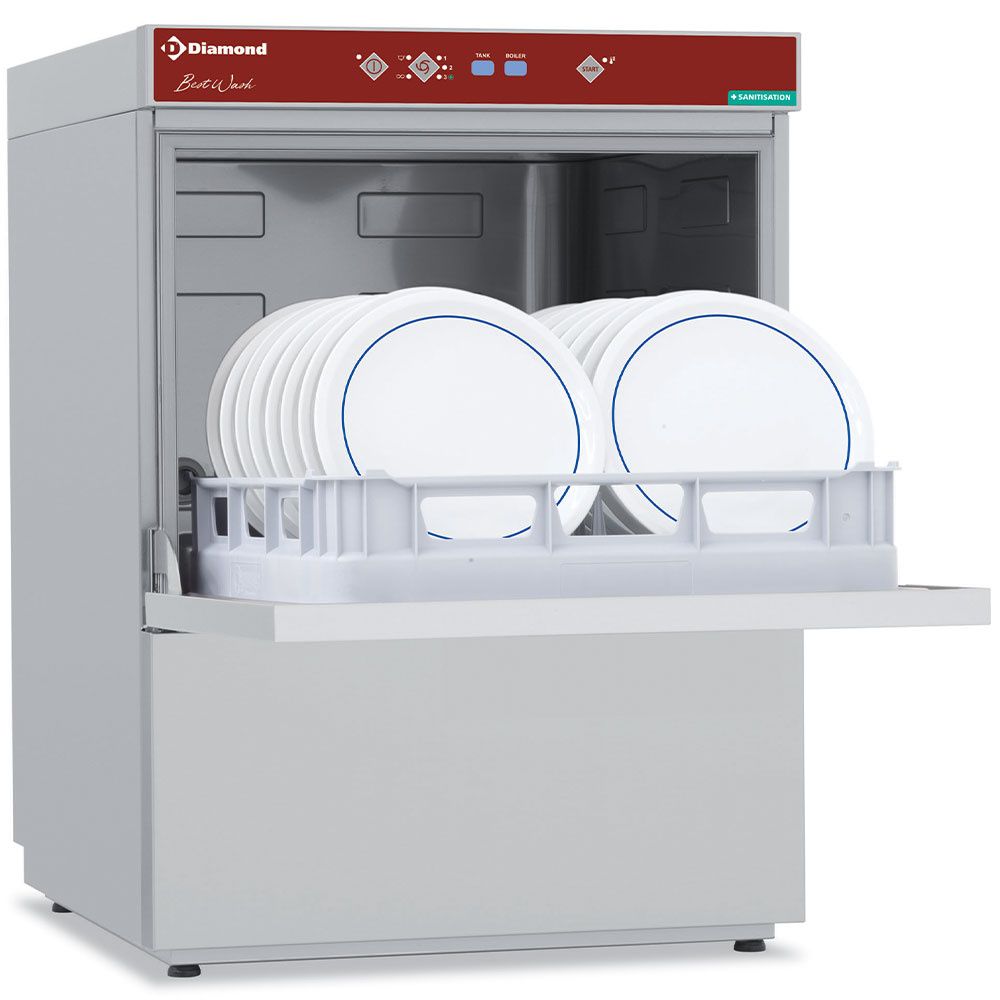

Dishwasher, basket 500x500 mm "Full-Hygiene"
SKU DFS7/6
€ 2 709,75
On Sale
was € 3 613,00 Save 25%
Lowest price in 30 days before discount: € 3 532,00
<p><span style="text-decoration: underline;"><strong>ADVANTAGE - SANITISATION:</strong></span> <br>This new sanitation program offers an additional guarantee thanks to a thermal disinfection phase during which the dishes are heated to a temperature of over 70°C and left there for a sufficient amount of time to reach an A0 lethality index of over 30 (sanitary standard EN 15883). This standard guarantees the elimination of certain classes of germs and bacteria. This "A0" value can be set as required and the cycle time is automatically adjusted accordingly. The level of hygiene achieved with this cycle is therefore far superior than that what a traditional washing cycle can offer.</p>
<p><span style="text-decoration: underline;"><strong>ADVANTAGE - BREAK TANK :</strong></span><br>The "break tank" is an anti-pollution device, AB type (UK standards). 1) It prevents that the tank water (with detergent) from flowing back to the distribution system. 2) Throughout the rinsing process, its pump guarantees a constant pressure, while drying and hygiene are ensured by a T° of 85°C...until the last drop of water!</p>
<p><span style="text-decoration: underline;"><strong>ADVANTAGE - SAVE THE PLANET :</strong> </span><br>Latest-generation machines, cutting-edge technologies, energy-saving, low consumption of water and detergent, thanks to the tank with a larger capacity and its "patented" filter to keep the washing water at the right temperature , as well as a high-efficiency wash pump (double flow).</p>
<p><span style="text-decoration: underline;"><strong>PLUS:</strong></span></p>
<ul>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">Peristaltic dispenser for rinsing product and peristaltic dispenser for liquid detergent supplied as standard.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">CSD digital control panel (soft touch).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;">EED energy saver.</li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">TCD control thermostat for guaranteed rinsing at 85°C.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">DRD accelerated pre-heating phase.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">DID self-diagnosis in the event of a fault.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">ADD tank and boiler temperature display (HACCP standard).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">DDD partial tank emptying, evacuation through the bottom of the tank.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">CID ‘soft contact’ automatic closing door (partial opening to evacuate steam).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">RGD rinsing at constant temperature (85°C), stable pressure.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;">BTD "Break Tank", anti-pollution device, AB type.</li>
<li>CAD self-cleaning cycle (100% automatic).</li>
<li>NB: <span lang="EN-US" style="mso-ansi-language: EN-US;">machines guaranteed for use with ‘osmosis’ treated water supply.</span></li>
</ul>
In stock
1
Save this product for later
Dishwasher, basket 500x500 mm "Full-Hygiene"
Product Details
Merk: Diamond
Voltage: 400-230/3N 50Hz
height_mm: 820
width_mm: 635
length_mm: 600
Type: Incl was-, afvoer-, spoelpomp
height_mm: 820
length_mm: 600
width_mm: 635
Weight: 74.00 kg
- Height of plates load Ø 390mm (height glasses 355mm).
- From 30 to 20 baskets/hour. 120", 180", continuous and " Sanitisation" PLD cycles.
- 3 phases: wash, unload, rinse.
- Standard discharge pump.
- Standard rinse pump (atmospheric boiler).
- Realization: fully manufactured in stainless steel AISI 304. Rotating wash and rinse arm (composite). Tank's filter (composite, 15L - 1,4kW). Moulded polypropylene wash chamber, with external pipes. Pump filter in polypropylene. Wash pump (double flux) 0,63 Hp (230V/1). Double-walled pressed door, smooth open/close system thanks to counter balancing, waterproof sealed door, stamped door handle. Adjustable stainless steel feet. Removable control panel for easy maintenance.
- Tank with automatic refill. Non-return valve. Hot water rinse (water consumption per cycle 2,7L), stainless steel boiler (6L - 7,6kW). Possibility to regulate the tank and boiler's temperature. Microswitch, to stop the machine when the door is opened. Safety thermostat. Standard: 2 baskets, 1 beaker, connection for the water pipe and drainage.
