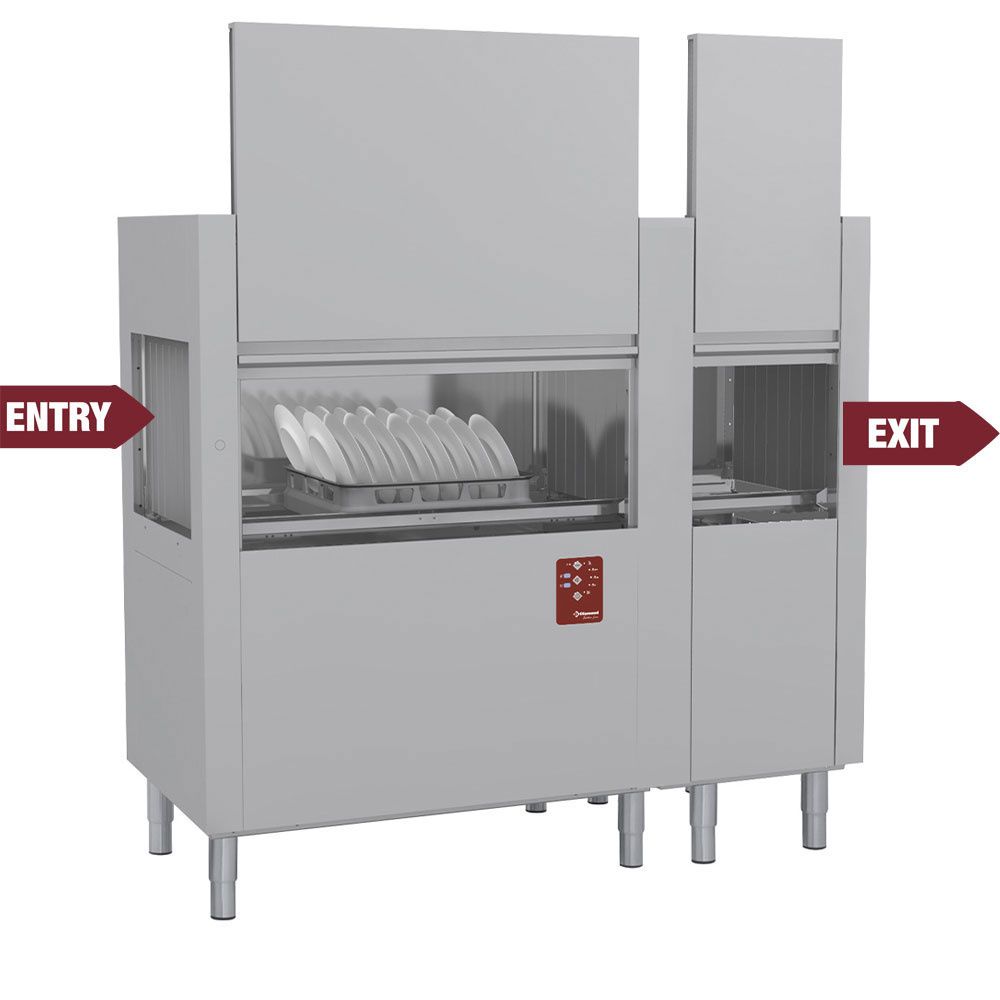

Rack conveyor dishwasher 200Bas/H
SKU DATIC20E/7
€ 15 374,25
On Sale
was € 20 499,00 Save 25%
Lowest price in 30 days before discount: € 16 032,80
<p>Security :</p>
<ul>
<li>Low voltage control (24V).</li>
<li>Safety thermostat for the boiler temperature at 110°C.</li>
<li>End-of-travel stop system (standard).</li>
<li>DIP switch to stop the unit as soon as the doors are opened.</li>
<li>Resistance protection.</li>
<li>Pump protection.</li>
<li>Traction system protected by automatic shutdown by means of a presence of foreign bodies.</li>
</ul>
<p>Staffing :</p>
<ul>
<li>2 baskets 18 plates.</li>
<li>1 generic basket.</li>
<li>1 cutlery compartment.</li>
</ul>
<p>PLUS - Traction Plus Line :</p>
<ul>
<li>Star Wash more, even more savings for a perfect result.... The Traction Plus Line range, thanks to a greater number of washing arms, offers you superior productivity, without harming, which is why Diamond® dishwashers are renowned for their high quality washing.</li>
<li>Top Rinse, for a sparkling result.... Thanks to three sections, two of which are pre-rinsing, Diamond® dishwashers incorporate a real "final wash" that reinforces the action of the rinsing liquid, thus increasing the brilliance and speed of drying the dishes.</li>
<li>Full Control, integrated intelligence.... With its "soft touch" control panel, Diamond® dishwashers allow you to easily and intuitively control the functions. The "LED" display of the boiler and tank temperatures as prescribed by HACCP standards, as well as the self-diagnosis messages in case of anomalies, will be of great help.</li>
</ul>
In stock
1
Save this product for later
Rack conveyor dishwasher 200Bas/H
Product Details
Merk: Diamond
Voltage: 400V
height_mm: 1615
width_mm: 770
length_mm: 1700
height_mm: 1615
length_mm: 1700
width_mm: 770
Weight: 320.00 kg
- Production capacity 200 baskets/hour
- Washing + rinsing
- 3 forward speeds
- Predisposed for left-hand entry
- Load height 440 mm
- Anti-pollution device type AB "Break Tank"
- Flushing pump as standard (atmospheric boiler).
- Made of AISI 304 stainless steel, between 12/10 mm and 30/10 mm thick, double-walled for better insulation thermal and acoustic (- 60 db), adjustable stainless steel feet.
- Linear or angular layout with left or right input.
- Traction system with parallel bars made of steel stainless steel.
- Automatic advancement of the trays.
- Possibility to work continuously or basket by basket, washing timed.
- Wide doors, easy opening, thanks to the "counterbalanced" system, equipped with a stop in open position, for access to the inside of the machine.
- Water curtains at the inlet and outlet (standard)
- Deep-drawn tanks, rounded corners, with resistors for temperature maintenance.
- Integral extractable filters, in stainless steel AISI 304, above of the tanks.
- Automatic levelling of water in the tanks.
- Rinsing saver to reduce the consumption of water and rinsing agent
- Stainless steel washing and rinsing arms, removable and interchangeable without tools.
- Washing, pre-washing and rinsing pump (double flow), placed in inclined position "self draining", equipped with a stainless steel filter.
- Boiler in stainless steel, with thermal insulation.
- Thermostat to control the boiler temperature at 90°C.
- "Thermocontrol" device ensuring rinsing at a temperature of 85°C.
- Digital "soft touch" control panel, waterproof with display of tank and boiler temperature, self-diagnosis in case of anomalies.
- Built-in USB port (on the electronic board)
