Home/Store/Apparatuur/Vaatwassers/Dishwashers with conveyor belt for baskets

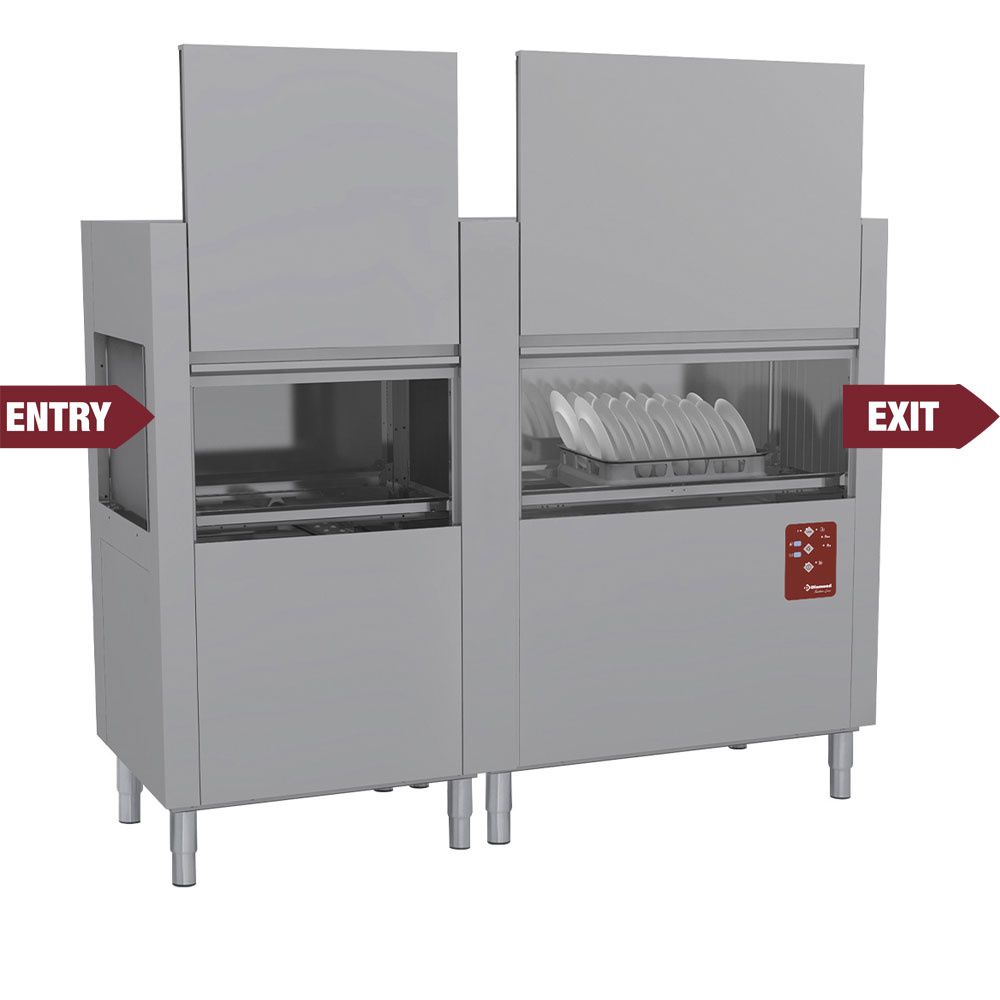

Rack conveyor dishwasher 200Bas/H
+5
+4
+3
+2

Rack conveyor dishwasher 200Bas/H

SKU D160E/7
€ 15 943,50
On Sale
was € 21 258,00 Save 25%
Lowest price in 30 days before discount: € 16 626,40
<p>Security:</p> <ul> <li>Low tension command (24V)</li> <li>End of cycle system stop.</li> <li>Micro stop switch for instant stop of doors</li> <li>Pump protection</li> <li>Traction system also protected by automatic stop, if intruding objects are detected</li> </ul> <p>Equipped with:</p> <ul> <li>DPP-18 18 plate 2 baskets</li> <li>DBB1 generic basket</li> <li>DG4 1 cutlery compartment</li> </ul> <p>Traction Line</p> <ul> <li>Star Wash, saves water, energy and detergent...</li> </ul> <p>Unlike traditional machines, Diamond&reg; dishwashers are equipped with special wash arms. Each arm is equipped with a large number of jets which are formed and orientated to follow the washing propellers. The energy saved is transferred to produce a more powerful wash</p> <ul> <li>Integral Clean Wash, a conception with no drawback..</li> </ul> <p>Moulded tanks, auto-drain pumps &amp; wash chambers free of internal tubes and sharp edges,... these are somes of assets. 100% hygiene guarentee that meets vigorous standards.<br>- Full Control, integrated control system...<br>"soft touch" display gives Diamond&reg; dishwashers simple and easy to follow functions. The par "DEL" illuminated display panel controls boiler and tank temperatures as well as automatic diagnostics, HACCP<br>normes, displaying an error message in case of malfunction.</p>
In stock
1
Save this product for later
Share this product with your friends
ShareSharePin it
Rack conveyor dishwasher 200Bas/H
Product Details
Merk: Diamond
Voltage: 400V
height_mm: 1615
width_mm: 770
length_mm: 1968
height_mm: 1615
length_mm: 1968
width_mm: 770
Weight: 300.00 kg
  • Production capacity 200 baskets/hour
  • Pre-wash + Washing + rinsing
  • 2 forward speeds
  • Predisposed for left-hand entry
  • Load height 440 mm
  • Water pressure reducer, equipped with pressure gauge.
  • Made in AISI 304 Stainless Steel, of 12/10mm and 30/10mm thick, double skin thermal and acoustic insulation (-60db) with adjustable stainless steel feet.
  • Linear or angular configuration with left and right entry/feed tables
  • Traction system with parallel stainless steel bars.
  • Automatic advance system with 3 speeds.
  • Ability to perform a continuous, basket-by-basket or delayed wash.
  • "Reversible" traction system, right left entry.
  • Counter balanced wide opening doors with stop in open position, for easy access to machine interior.
  • Entry and exit water curtains.
  • Pressed tank with rounded edges, resistant equipped for maintenance of high temperatures.
  • Integrated, extractable filters, made in AISI 304 stainless steel situated above tanks.
  • Automatic refill of tank water levels.
  • Rinse Saver, reduces water and rinse aid consumption.
  • Demountable stainless steel wash and rinse arm serviceable without the use of tools.
  • Wash and pre-wash pump, in inclined position "auto empty" with stainless steel filter.
  • Water entry equipped with pressure reduction system.
  • Stainless steel boiler, with thermal insulation.
  • 90°C thermostatic control.
  • Waterproof "soft touch" digital control panel with tank and boiler temperature display, malfunctions automatically diagnosed.
