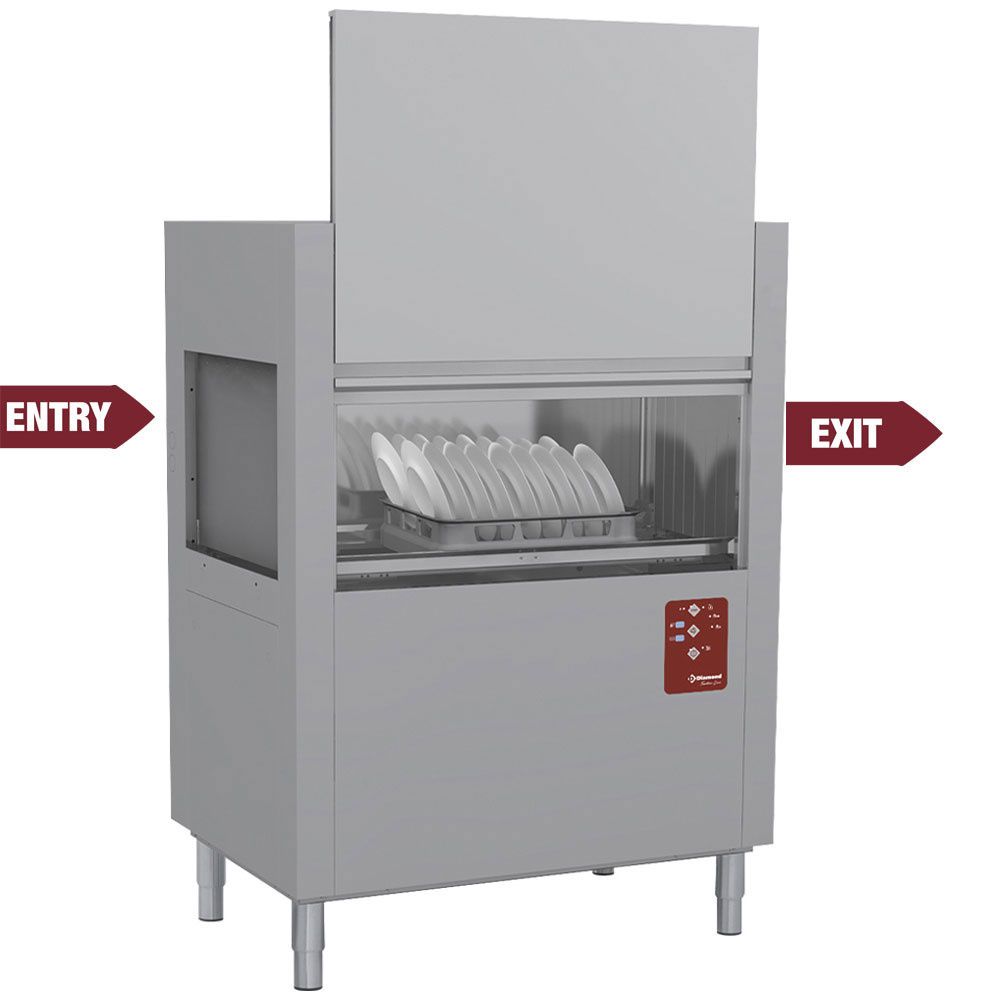

Rack conveyor dishwasher 120Bas/h
+5
+4
+3
+2

Rack conveyor dishwasher 120Bas/h

SKU D117E/7
€ 9 244,50
On Sale
was € 12 326,00 Save 25%
Lowest price in 30 days before discount: € 9 640,80
<p>Security:</p> <ul> <li>Low tension command (24V)</li> <li>End of cycle system stop.</li> <li>Micro stop switch for instant stop of doors</li> <li>Pump protection</li> <li>Traction system also protected by automatic stop, if intruding objects are detected</li> </ul> <p>Equipped with:</p> <ul> <li>DPP-18 18 plate 2 baskets</li> <li>DBB1 generic basket</li> <li>DG4 1 cutlery compartment</li> </ul> <p>PLUS - Traction Line :</p> <ul> <li>Star Wash, water, energy and detergent savings... Unlike traditional machines, Diamond&reg; dishwashers have a reduced number of washing arms. Each arm is equipped with a large number of nozzles whose shape and orientation generate distinct laminar flows (not superimposed). This avoids waste. The recovered power is thus used 100% for washing.</li> <li>Integral Clean Wash, a design without concessions.... Seamless moulded tanks, integral surface filters, self-draining pumps, washing chamber made without internal piping and without sharp angles. Here are some of the advantages that will make you forget the big maintenance tasks so tedious and tiring. The guarantee of 100% hygiene in compliance with current standards.</li> <li>Full Control, integrated intelligence.... With its "soft touch" control panel, Diamond&reg; dishwashers allow you to easily and intuitively control the functions. The "LED" display of the boiler and tank temperatures as prescribed by HACCP standards, as well as the self-diagnosis messages in case of anomalies, will be of great help.</li> </ul>
In stock
1
Save this product for later
Share this product with your friends
ShareSharePin it
Rack conveyor dishwasher 120Bas/h
Product Details
Merk: Diamond
Voltage: 400V
height_mm: 1615
width_mm: 770
length_mm: 1150
height_mm: 1615
length_mm: 1150
width_mm: 770
Weight: 240.00 kg
  • Production capacity 120 baskets/hour
  • Washing + rinsing
  • 2 forward speeds
  • Predisposed for right-hand entry (versatile for left-hand entry, unless with drying module)
  • Load height 440 mm
  • Water pressure reducer, equipped with pressure gauge.
  • Made in AISI 304 Stainless Steel, of 12/10mm and 30/10mm thick, double skin thermal and acoustic insulation (-60db) with adjustable stainless steel feet.
  • Linear or angular configuration with left and right entry/feed tables
  • Traction system with parallel stainless steel bars.
  • Automatic advance system.
  • Ability to perform a continuous, basket-by-basket or delayed wash.
  • "Reversible" traction system, right left entry.
  • Counter balanced wide opening doors with stop in open position, for easy access to machine interior.
  • Entry and exit water curtains.
  • Pressed tank with rounded edges, resistant equipped for maintenance of high temperatures.
  • Integrated, extractable filters, made in AISI 304 stainless steel situated above tanks.
  • Automatic refill of tank water levels.
  • Rinse Saver, reduces water and rinse aid consumption.
  • Demountable stainless steel wash and rinse arm serviceable without the use of tools.
  • Wash and pre-wash pump, in inclined position "auto empty" with stainless steel filter.
  • Water entry equipped with pressure reduction system.
  • Stainless steel boiler, with thermal insulation.
  • 90°C thermostatic control.
  • Waterproof "soft touch" digital control panel with tank and boiler temperature display, malfunctions automatically diagnosed.
