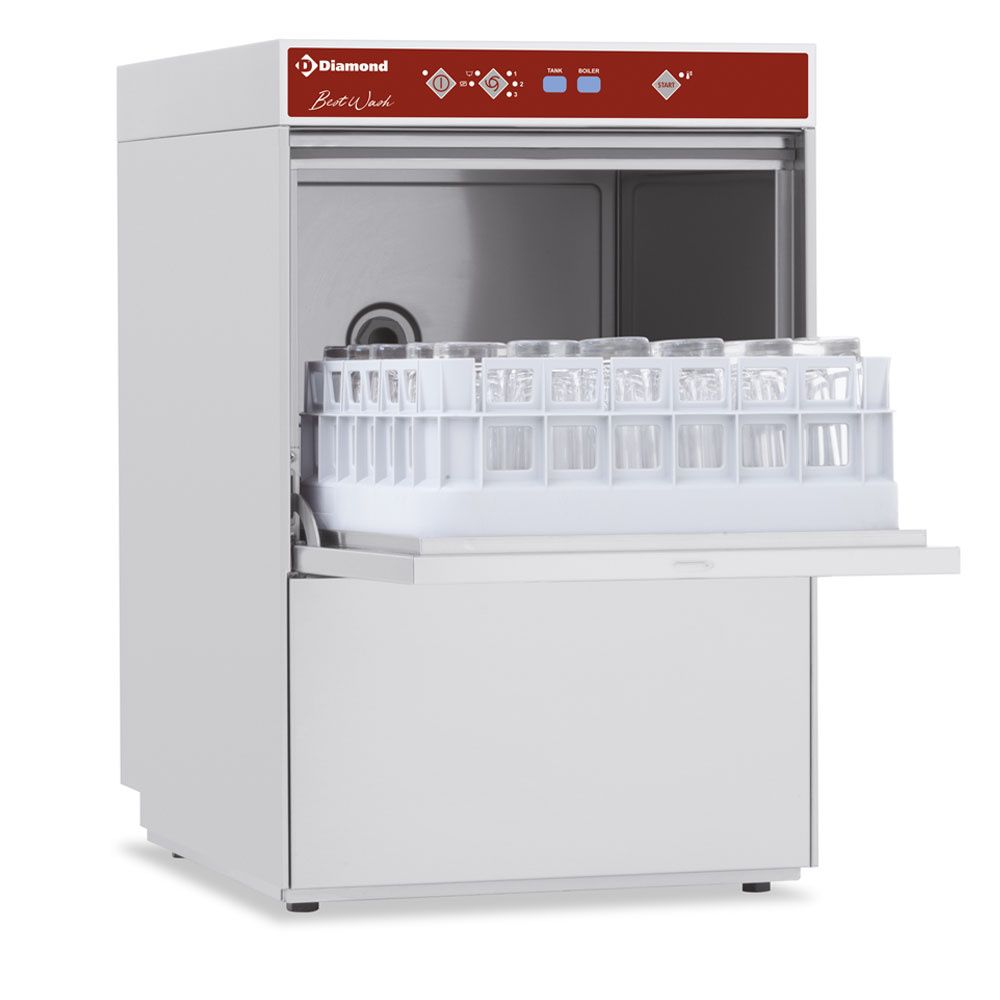

Glass-washer, basket 400x400 mm " Full-Hygiène ", with softener continuously
SKU DBS5/6-AC
€ 2 216,25
On Sale
was € 2 955,00 Save 25%
Lowest price in 30 days before discount: € 2 311,20
<ul>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">Peristaltic dispenser for rinsing product and peristaltic dispenser for liquid detergent supplied as standard.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">CSD digital control panel (soft touch).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;">EED energy saver.</li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">TCD control thermostat for guaranteed rinsing at 85°C.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">DRD accelerated pre-heating phase.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">DID self-diagnosis in the event of a fault.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">ADD tank and boiler temperature display (HACCP standard).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">DDD partial tank emptying, evacuation through the bottom of the tank.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">CID ‘soft contact’ automatic closing door (partial opening to evacuate steam).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">RGD rinsing at constant temperature (85°C), stable pressure.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;">BTD "Break Tank", anti-pollution device, AB type.</li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><strong><span lang="EN-US" style="mso-ansi-language: EN-US;">NB</span></strong><span lang="EN-US" style="mso-ansi-language: EN-US;">: machines guaranteed for use with ‘osmosis’ treated water supply.</span></li>
</ul>
<p><span style="text-decoration: underline;"><strong>ADVANTAGE - BREAK TANK</strong></span> :<br>The "break tank" is an anti-pollution device, AB type (UK standards). 1) It prevents that the tank water (with detergent) from flowing back to the distribution system. 2) Throughout the rinsing process, its pump guarantees a constant pressure, while drying and hygiene are ensured by a T° of 85°C...until the last drop of water!</p>
<p><span style="text-decoration: underline;"><strong>ADVANTAGE - Continuous Water Softener</strong></span> : <br>The built-in continuous water softener, constantly keeps softened water, regardless of the number of wash cycles, for perfect results. Offers the advantage of not having to stop the dishwasher to allow the regeneration of resins during the micro-interruptions wash cycle used to regenerate the resins, while continuing to wash!</p>
<p><span style="text-decoration: underline;"><strong>ADVANTAGE - SAVE THE PLANET</strong></span> : Latest-generation machines, cutting-edge technologies, energy-saving, low consumption of water and detergent, thanks to the tank with a larger capacity and its "patented" filter to keep the washing water at the right temperature , as well as a high-efficiency wash pump (double flow).</p>
In stock
1
Save this product for later
Glass-washer, basket 400x400 mm " Full-Hygiène ", with softener continuously
Product Details
Merk: Diamond
Voltage: 230V
height_mm: 710
width_mm: 550
length_mm: 465
height_mm: 710
length_mm: 465
width_mm: 550
Weight: 48.00 kg
- Built-in continuous water softener (ATTENTION: cold water connection).
- Glass loading height Ø 300mm.
- From 60 to 24 baskets/hour. 60", 120" or 150" PLD cycles.
- 3 phases: wash, unload, rinse.
- Standard discharge pump.
- Standard rinse pump (atmospheric boiler).
Realization: in double walls entirely in stainless steel AISI 304. Washing and rinsing arms (upper and lower), rotating, (lower arm in stainless steel). Self-cleaning stainless steel nozzles. Fully deep-drawn tank (8L - 0,6kW). Stamped basket guides, no unevenness and no scale build-up. Integral tank filter in stainless steel "cast". Patented pump filter keeps washing water cleaner and at the right temperature. Double-walled pressed door, removable door seal, pressed handle. Adjustable cylinders. Removable control panel for easy after-sales service.
Automatic discharge function of the water tank, integrated in the control panel (no more need to remove the plug manually). Automatic tank filling. Non-return valve. Hot water rinse (water consumption per cycle 2L), stainless steel boiler (2.6L - 2.6kW). Tank and boiler temperature can be regulated. High-efficiency washing pump (double flow) guaranteeing significant energy savings. Microswitch to stop the cycle when the door is opened. Safety thermostat. 2 baskets, 1 for cup coasters, 1 cup, water connection and discharge pipes.
