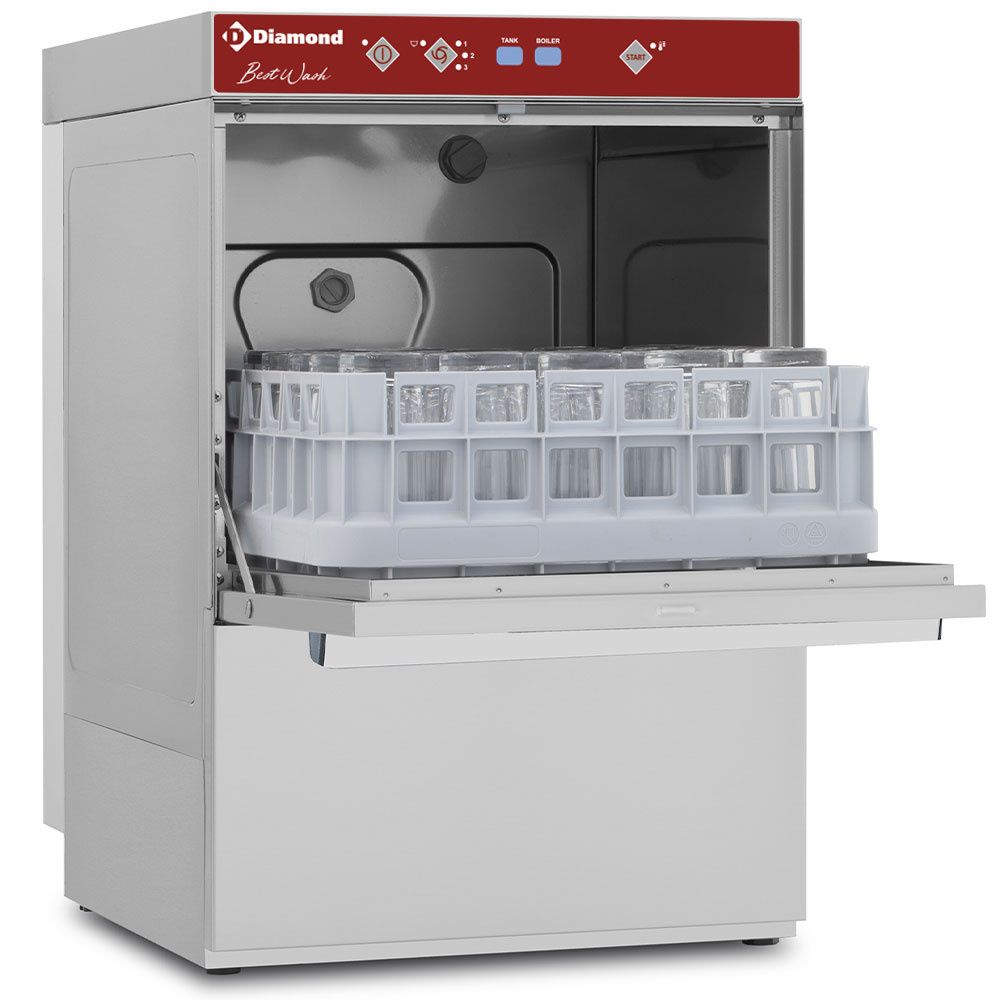

Glass-washer, basket 400x400 mm "Full Hygiene"
SKU DGS8/6
€ 1 795,50
On Sale
was € 2 394,00 Save 25%
Lowest price in 30 days before discount: € 2 341,00
<ul>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">Peristaltic dispenser for rinsing product and peristaltic dispenser for liquid detergent supplied as standard.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">CSD digital control panel (soft touch).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;">EED energy saver.</li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">TCD control thermostat for guaranteed rinsing at 85°C.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">DRD accelerated pre-heating phase.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">DID self-diagnosis in the event of a fault.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">ADD tank and boiler temperature display (HACCP standard).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">CID ‘soft contact’ automatic closing door (partial opening to evacuate steam).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">RGD rinsing at constant temperature (85°C), stable pressure.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;">BTD "Break Tank", anti-pollution device, AB type.</li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><strong><span lang="EN-US" style="mso-ansi-language: EN-US;">NB</span></strong><span lang="EN-US" style="mso-ansi-language: EN-US;">: machines guaranteed for use with ‘osmosis’ treated water supply.</span></li>
</ul>
<p><span style="text-decoration: underline;"><strong>ADVANTAGE - SAVE THE PLANET</strong></span> : Latest-generation machines, cutting-edge technologies, energy-saving, low consumption of water and detergent, thanks to the tank with a larger capacity and its "patented" filter to keep the washing water at the right temperature , as well as a high-efficiency wash pump (double flow).</p>
<p><span style="text-decoration: underline;"><strong>ADVANTAGE - BREAK TANK</strong></span> :The "break tank" is an anti-pollution device, AB type (UK standards). 1) It prevents that the tank water (with detergent) from flowing back to the distribution system. 2) Throughout the rinsing process, its pump guarantees a constant pressure, while drying and hygiene are ensured by a T° of 85°C...until the last drop of water!</p>
In stock
1
Save this product for later
Glass-washer, basket 400x400 mm "Full Hygiene"
Product Details
Merk: Diamond
Voltage: 230V
height_mm: 670
width_mm: 535
length_mm: 436
Type: Incl was-, afvoer-, spoelpomp
height_mm: 670
length_mm: 436
width_mm: 535
Weight: 48.00 kg
- Glass loading height 300mm.
- From 60 to 24 baskets/hour. 60", 120" or 150" PLD cycles.
- 3 phases: washing, unloading, rinsing.
- Drain pump as standard.
- Rinsing pump as standard (atmospheric boiler).
Double- walled construction entirely in stainless steel AISI 304. Washing and rinsing arms (upper and lower), rotating, (lower arm in stainless steel). Self-cleaning stainless steel nozzles. Fully deep-drawn tank (8L - 0,6kW). Stamped basket guides, no unevenness and no scale build-up. Integral tank filter in stainless steel "cast". Patented pump filter keeps washing water cleaner and at the right temperature. Double-walled pressed door, removable door seal, pressed handle. Adjustable cylinders. Removable control panel for easy after-sales service.
Automatic discharge function of the water tank, integrated in the control panel (no more need to remove the plug manually). Automatic tank filling. Non-return valve. Hot water rinse (water consumption per cycle 2L), stainless steel boiler (2.6L - 2.6kW). Tank and boiler temperature can be regulated. High-efficiency washing pump (double flow) guaranteeing significant energy savings. Microswitch to stop the cycle when the door is opened. Safety thermostat. 2 baskets, 1 for cup coasters, 1 cup, water connection and discharge pipes.
