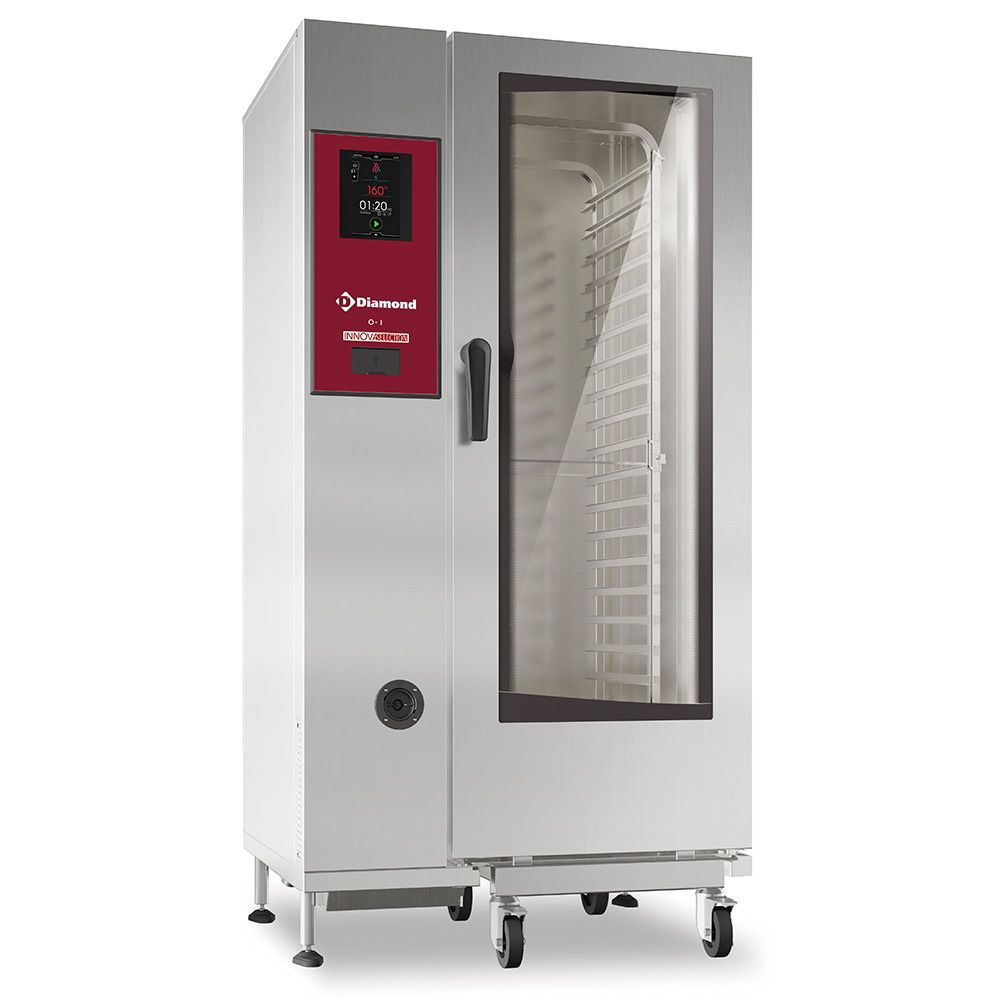

Gas oven "TOUCH" direct steam and convection 20xGN1/1+ Cleaning
SKU SDGT/XC-20
€ 20 809,50
On Sale
was € 27 746,00 Save 25%
Lowest price in 30 days before discount: € 22 305,60
<p><span style="text-decoration: underline;"><strong>PLUS Version Ct :</strong></span></p>
<ul>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">Direct injection steam (90% saturation).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">"TOUCH SCREEN" controls, 7" touch screen and high definition color, allowing the user to customize all the main functions of the oven.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">Favourites management on the home screen.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">Audible and visual alert for program end.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">2 baking modes (programmed, manual).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">11 levels of humidification.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">Memory (pre-programmable) for 1000 recipes, baking in 16 different phases (choice of 16 different types of successive baking).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">USB port for storage and transfer of various cooking programs (HACCP data management).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">7 speed controls.</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">Core probe (1 "sensor")</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">Automatic pre-heating and rapid cooling of the cooking chamber (CCRR).</span></li>
<li class="MsoNormal" style="mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;"><span lang="EN-US" style="mso-ansi-language: EN-US;">"AUTO-CLEANING" integrated automatic cleaning device (CCNA), 4 different cycles to choose from, " ECONOMIZER " function for saving water and detergents.</span></li>
</ul>
<p>Optional: Communication module for oven & "TOUCH" cell (see: AC/CMAF-X).</p>
<p><span style="text-decoration: underline;"><strong>ADVANTAGE - TYPE of COOKING :</strong></span></p>
<ul>
<li>Convection of 25° to 300°C.</li>
<li>Steam 100°C.</li>
<li>Mixed convection/steam from 25° to 250°C.</li>
<li>Regeneration and maintaining temperature from 25° to 250°C.</li>
</ul>
In stock
1
Save this product for later
Gas oven "TOUCH" direct steam and convection 20xGN1/1+ Cleaning
Product Details
Merk: Diamond
height_mm: 1794
width_mm: 864
length_mm: 911
height_mm: 1794
length_mm: 911
width_mm: 864
Weight: 322.00 kg
- Oven "LENGTHWISE" loading of GN 1/3, 1/2, 2/3 and 1/1 plates.
- Load capacity 100Kg.
- 1 transfer trolley and 1 removable loader with 63mm pitch "anti-tipping".
- Core temperature probe.
- Trolley and loader 600x400 EURONORM (on request ref: AC/2P2...).
- Bottom closing plate integrated in the door.
- Adjustable stainless steel feet.
- NB: delivered without grids and without GN plates.
- Inner and outer construction in stainless steel AISI 304, thermal insulation in ceramic fiber, control panel with stainless steel filter, preventing soiling of the components (ventilated panel), stainless steel feet. Cooking chamber: fully welded, completely watertight, rounded corners and edges without any roughness. Sealing gasket fixed on the front of the cooking chamber. Double-drawn bottom that separates condensation from the grease towards the drain. Standard steam condenser reducing the temperature of the condensate at the drain and limiting the steam outlet when the door is opened. Easily removable platinum door structure. Easily removable heat diffusers. Large motorized door allowing all types of cooking. Unique design of the enclosure coupled with a side fan in AISI 304 stainless steel (CCRR), guarantees uniform heat management and distribution.
- Double-glazed door: ergonomic and athermal handle, automatic closing with safety device to prevent accidental opening, condensate recovery unit integrated in the door, interior window mounted on hinges for easy cleaning and perfect hygiene. Air circulation between the glass panels guarantees better thermal insulation. Microswitch to stop the fan when opening. Gas heating: by pulsed burners and grooved heat exchangers (increased efficiency and saving up to 20% in gas consumption and reducing harmful emissions by 20%), steam by nebulizer. TOUCH SCREEN control panel with front accessibility, easy and fast service, IPx5 protection rating (against water jets with a hose).
Optional: Communication module for oven & "TOUCH" cell (see: AC/CMAF-X)
