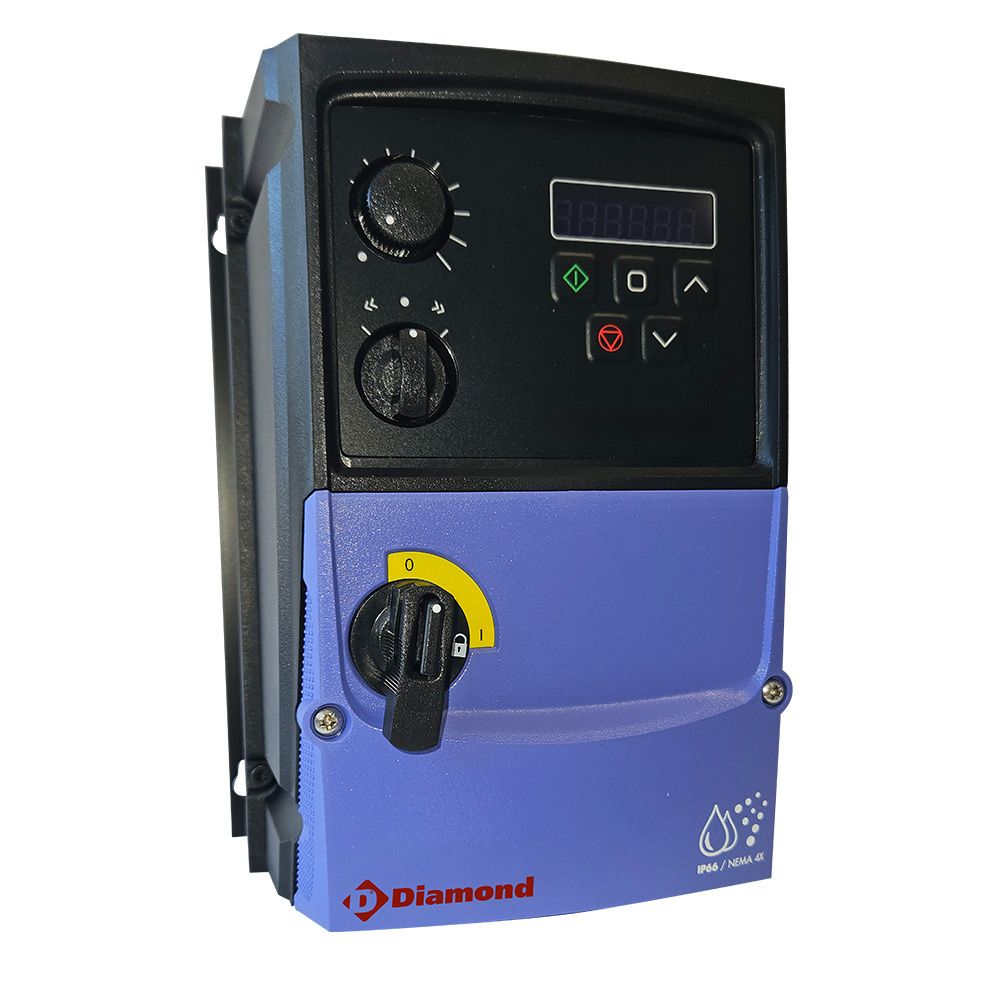

Variable Frequency Drive - IP66
SKU VF46/C
€ 944,25
On Sale
was € 1 259,00 Save 25%
Lowest price in 30 days before discount: € 1 253,00
<p><span style="text-decoration: underline;"><strong>PLUS</strong></span> :</p>
<p>Compact and robust design, with quick commissioning and intuitive use. The three-phase frequency converters offer solutions for virtually all converter requirements, with a power range from 0.75 kW to 1.5 kW (max. 4.1A). Equipped with an EMC filter, IP20 (or IP66) protection rating, and an operating temperature range of -20°C to +50°C, they are suitable for all environments!</p>
In stock
1
Save this product for later
Variable Frequency Drive - IP66
Product Details
Merk: Diamond
Voltage: 400/3N 50-60Hz
height_mm: 232
width_mm: 161
length_mm: 162
height_mm: 232
length_mm: 162
width_mm: 161
Weight: 3.00 kg
- For motor: CVX/4T - CVX/6T - CVX/8T
- Suitable for outdoor use, IP66 protection rating // NEMA 4X resistant to ultraviolet (UV) rays, grease, oil, and acids.
- Potentiometer for speed control.
- Forward/reverse selector.
- Power disconnect switch.
- Control panel with digital screen.
- Three-phase input / three-phase output (3x400V / 3x400V).
- EMC filter (electromagnetic compatibility).
- Input frequency: 48-62 Hz, output frequency: 0-500 Hz.
- Accepts an overload of 150% for 60 seconds (175% for 2.5 seconds).
- Intensive operation up to an ambient temperature of -20° to +50°C (storage temperature: -40° to +60°C).
- Quick commissioning.
- Basic parameters (factory preset) and "macro application" functions (industrial control, pump control, and fan control).
- Modbus RTU serial communication.
- Internal PI control.
- Device built in accordance with all current (CE) standards.
